x11 Forwarding on macOS

Published

2020-12-31

Install xQuartz

If homebrew installed:

brew install --cask xquartz

Or install from XQuartz website

Restart the machine

Enable iglx

defaults write org.macosforge.xquartz.X11 enable_iglx -bool true

According to this discussion here, but might not be relevant

# check before writing
defaults read com.apple.x11 nolisten_tcp
defaults read org.X.x11 nolisten_tcp

defaults write com.apple.x11 nolisten_tcp -boolean false
defaults write org.X.x11 nolisten_tcp -boolean false

To validate:

printenv DISPLAY
# /private/tmp/com.apple.launchd.oyK9GxAmbh/org.macosforge.xquartz:0

SSH config

locate your config file, mine is at ~/.ssh/config

Host euler.ethz.ch
    HostName euler.ethz.ch
    User USERNAME
    ForwardX11Trusted yes
    ForwardX11 yes
#     XAuthLocation /opt/X11/bin/xauth # not required

Connect & Debug

ssh -Y USERNAME@euler.ethz.ch

# debug
ssh -v -Y USERNAME@euler.ethz.ch
# check for
# debug1: Requesting X11 forwarding with authentication spoofing.

# validate
printenv DISPLAY
# localhost:10.0

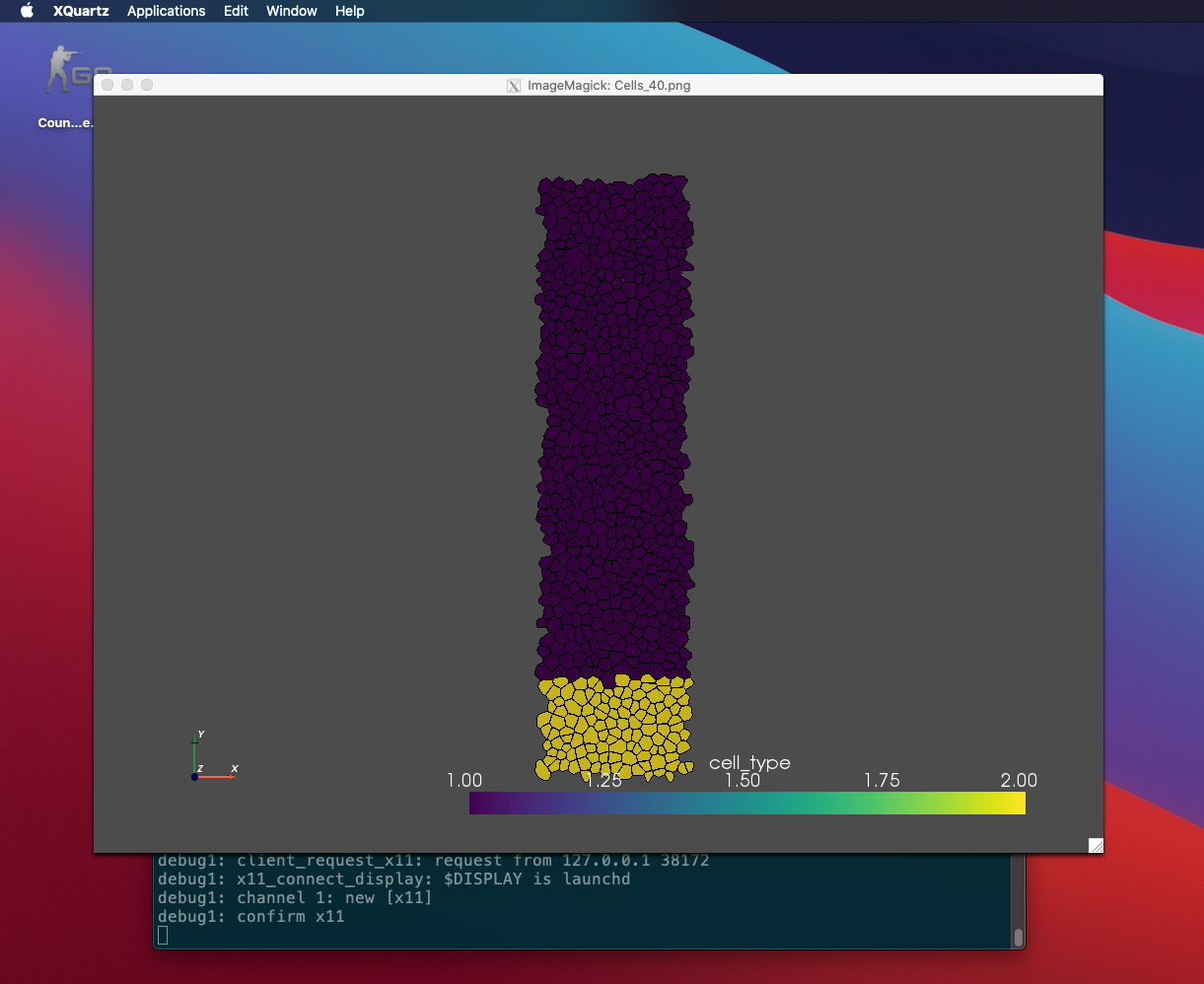

display random.png
# show up in the XQuartz window

Note

Noted that this might conflict with some plotting software like R, matplotlib in python,

If so, one can switch to headless mode and view
